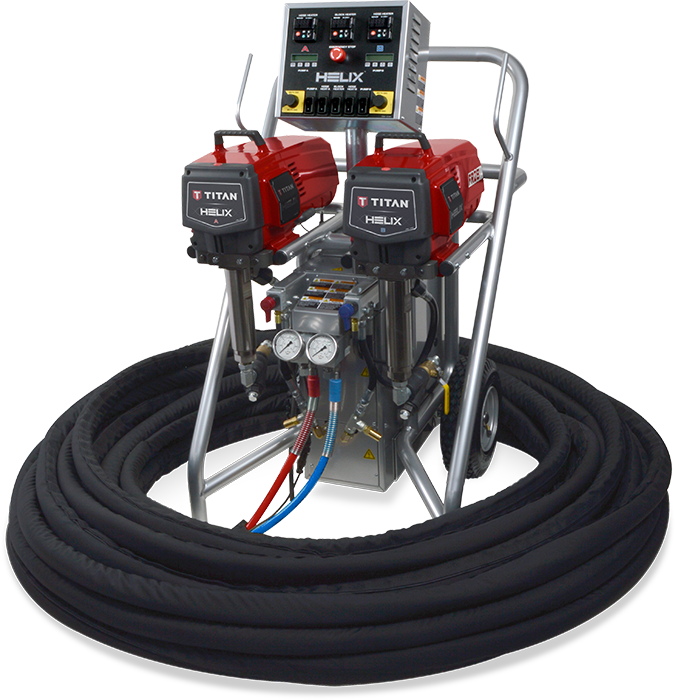

The Helix Revolution
Experience a new level of precision and efficiency with the Helix® FR28, designed to move the industry forward and to help you achieve a better, more consistent spray. Here's what makes this fixed-ratio proportioner such a revolutionary asset for spray foam and spray polyurea professionals:
- Industry's first fully integrated electronically controlled dual drive proportioner
- Viscosity calibration to achieve a true 1:1 ratio when you need it for demanding applications
- High-efficiency aluminum mass heater with wrap-around design provides over 30 seconds of dwell time
- Modular design is easily customizable for 3 kW to 18 kW
- EasyOut™ fluid section keeps the pump isolated from the environment to prevent crystallization
- Lightweight and compact design
- Universal power adapter using shore power or a generator
THE ULTIMATE MIX MASTER
Featuring Smart Connect Controller
- Dual Pump System allows for easy system priming or purging
- Ratio is controlled by non-dosing technology
- Superior control to assure on ratio accuracy and performance
Let Helix do the work
Featuring EasyOut Fluid Section
- Quad+ Packings™ keep the pump isolated from the environment to prevent crystallization
- Self-adjusting and self-compensating packings never need adjustment
- Change fluid section while on-site in minutes, reduces downtime to keep you spraying.
Bring the heat
Featuring SureFire® Heating System
- High-efficiency aluminum mass heater with wrap-around design to provide over 30 seconds of dwell time
- Heating rod is completely isolated from the coating to prevent failure from chemical or from exposure to air when run dry
- Modular design is easily customizable from 3 kW to 18 kW
- In-hose heating element manages temperature from the pump to the gun
- Accurate temperature regardless of the environment
THE FUTURE OF ELECTRIC FIXED RATIO PROPORTIONERS
The Helix FR28 provides unmatched accuracy and heating efficiency. The key features provide balanced pressure, less wasted material and direct heat from the system all the way to the gun. With a user-friendly design – allowing for simple operation and inexpensive maintenance – the FR28 offers better results and increased ROI.
Smart Select Fixed Ratio Controller:
- Dual Pump System allows for easy system priming or purging.
- Ratio is controlled by non-dosing technology.
- Superior control to assure on ratio accuracy and performance.
First Electronically Controlled Dual System Proportioner :
- Continual communication between pumps.
- Synchronizes ratio 100 times per motor revolution.
30% Lighter Than Most Comparable Equipment
Standard with 230 v (1) Phase 48 Amps
SUREFIRE BLOCK HEATER
SUREFIRE HOSE HEATER
- Actively controls temperature to the gun.
- Heating element in the hose provides direct heat | Adds heat all the way to the end of the hose.
- True chemical temperature measured at the gun.
- Heat with less power - 4400 watts.
- Combined SureFire Heating System power - 10,400 watts.
Tough, Durable, and easy to maintain
QUAD+ PACKINGS
- Self-adjusting packings deliver the best performance every time you spray.
- Packings isolate the piston from the atmosphere increasing life.
EASYOUT FLUID SECTION
- Change fluid section on-site in minutes and reduces downtime to keep you spraying.
MULTIPLE APPLICATIONS
.
The Helix FR28 is designed to spray two component polyurea, polyaspartics, and spray polyurethane foam for:
• Infrastructure
• Industrial
• Marine
• Containment
• Transportation
• Residential/Commercial Construction
Plural Component
.
